Automation and robotics cable assemblies

Joint daisy-chains, servo power and feedback, sensor cordsets and drag-chain cables for robot arms, humanoids, AMRs and automated cells.

Get a free sample Request a quote
Built to IPC/WHMA-A-620 · 48 hours Bay Area delivery

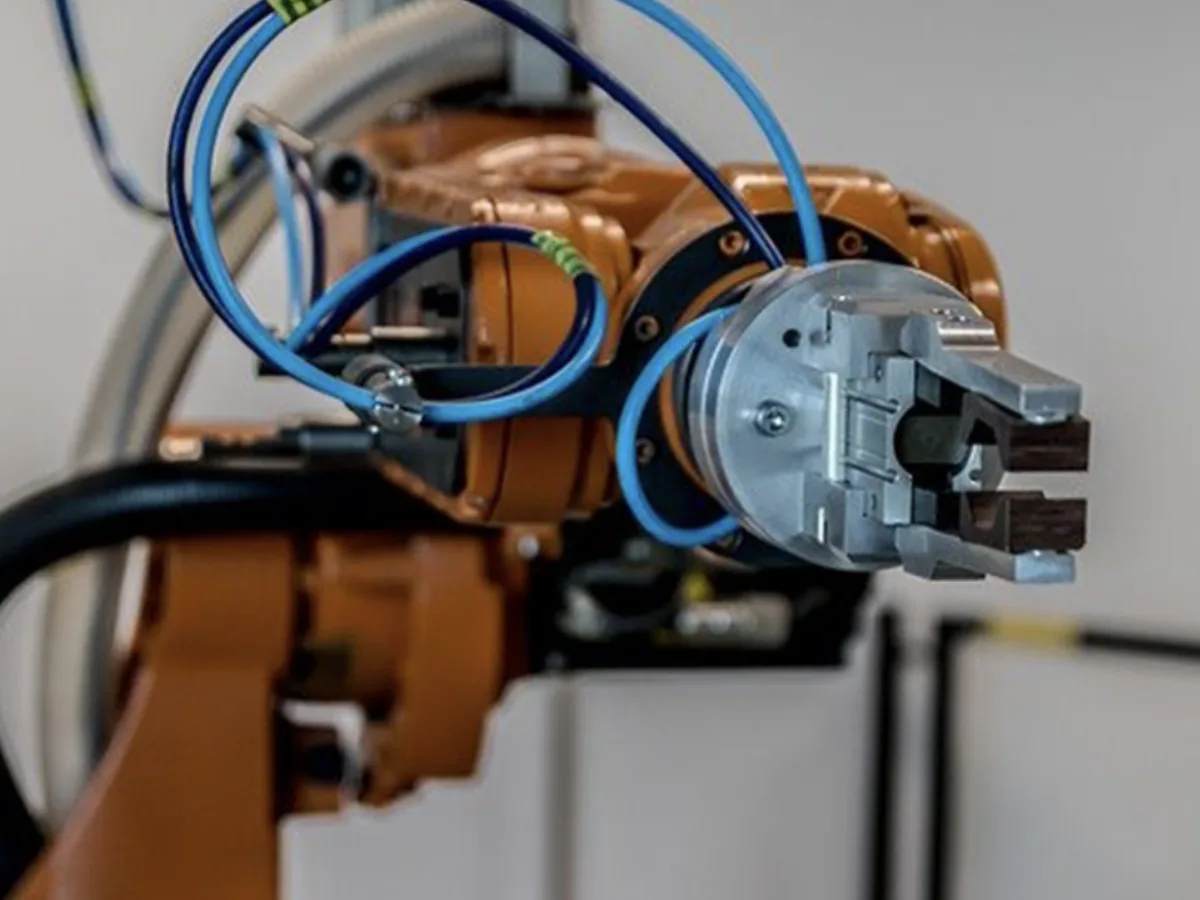

Automation and robotics cable assemblies
Connector and cable families

What we terminate for automation & robotics.

Families, not single part numbers. If yours isn't here, send the part number and we'll quote it.

Wire-to-board signal

  • JST GH connectorJST GH
  • JST PH connectorJST PH
  • JST SH connectorJST SH
  • JST XH connectorJST XH
  • JST ZH connectorJST ZH
  • JST EH connectorJST EH
  • Molex PicoBlade connectorMolex PicoBlade
  • Molex Pico-Lock connectorMolex Pico-Lock
  • Molex Micro-Lock Plus connectorMolex Micro-Lock Plus
  • Molex CLIK-Mate connectorMolex CLIK-Mate
  • Hirose DF13 connectorHirose DF13
  • Hirose DF11 connectorHirose DF11
  • Harwin Gecko connectorHarwin Gecko
  • TE Micro-MaTch connectorTE Micro-MaTch

Power

  • Molex Micro-Fit 3.0 connectorMolex Micro-Fit 3.0
  • Molex Mini-Fit Jr. connectorMolex Mini-Fit Jr.
  • Molex Nano-Fit connectorMolex Nano-Fit
  • Molex Ultra-Fit connectorMolex Ultra-Fit
  • Amass XT30 / XT60 / XT90 (incl. 2+2) connectorAmass XT30 / XT60 / XT90 (incl. 2+2)
  • Amass AS150 connectorAmass AS150
  • Anderson Powerpole connectorAnderson Powerpole
  • Anderson SB connectorAnderson SB
  • TE Mate-N-Lok connectorTE Mate-N-Lok

Circular industrial

  • M5 connectorM5
  • M8 (3/4/6/8-pin) connectorM8 (3/4/6/8-pin)
  • M12 A/B/D/X-coded connectorM12 A/B/D/X-coded
  • M16 connectorM16
  • M23 power and signal connectorM23 power and signal
  • 7/8"-16 mini-change connector7/8"-16 mini-change
  • Binder / Lumberg circular connectors connectorBinder / Lumberg circular connectors
  • Amphenol LTW sealed circular connectorAmphenol LTW sealed circular

Fieldbus and data

  • EtherCAT / PROFINET (RJ45, M12 D-coded) connectorEtherCAT / PROFINET (RJ45, M12 D-coded)
  • CAN / CANopen / DeviceNet connectorCAN / CANopen / DeviceNet
  • RS-485 / Modbus connectorRS-485 / Modbus
  • IO-Link connectorIO-Link
  • USB 2.0 / 3.x connectorUSB 2.0 / 3.x
  • GigE Vision connectorGigE Vision

Motion and I/O

  • D-sub (DE-9, DA-15, DB-25, HD) connectorD-sub (DE-9, DA-15, DB-25, HD)
  • Servo power and feedback (manufacturer-specific) connectorServo power and feedback (manufacturer-specific)
  • Phoenix Contact pluggable terminal blocks connectorPhoenix Contact pluggable terminal blocks
  • Weidmüller OMNIMATE pluggable connectors connectorWeidmüller OMNIMATE pluggable connectors
  • Ferrules and flying leads connectorFerrules and flying leads

Cable types

  • Continuous-flex PUR drag-chain connectorContinuous-flex PUR drag-chain
  • Torsion-rated robot cable connectorTorsion-rated robot cable
  • Silicone high-strand connectorSilicone high-strand
  • Shielded twisted pair connectorShielded twisted pair
  • Hybrid power + signal connectorHybrid power + signal

Assemblies we build

  • Actuator power + CAN daisy-chains
  • Servo motor power and encoder feedback cables
  • High-flex drag-chain and torsion cables
  • M8/M12 sensor and fieldbus cordsets
  • End-effector and tool-changer harnesses
  • Battery and charging leads for mobile robots

Tests on these assemblies

  • Point-to-point continuity and shorts
  • Crimp pull force per terminal lot
  • Insulation resistance
  • Shield continuity
  • Flex-cycle testing on request
View a sample test report
